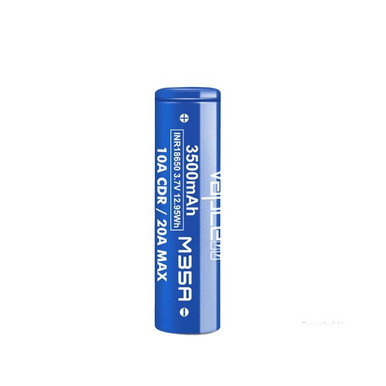

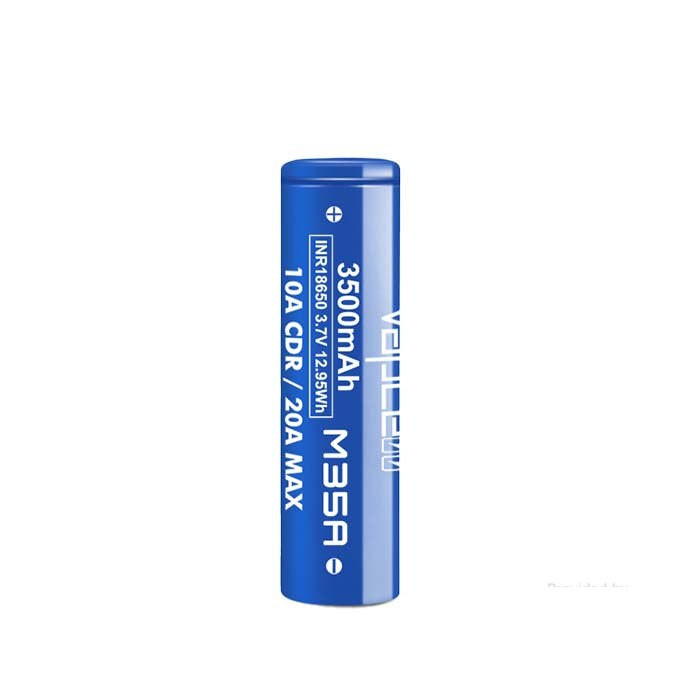

Vapcell M35A 18650 3500mAh Battery

The 18650 cell format predates the vape industry entirely. Named for its dimensions (18mm diameter, 65mm length), the 18650 was already established in laptop batteries, torches, and power tools before vaping adopted it as the standard. When the regulated box mod category emerged, manufacturers built their devices around the 18650 because it was proven, widely available, and well understood by engineers.

The result is that the 18650 is compatible with an enormous number of devices produced over the past decade. If you own a single-battery or dual-battery box mod purchased at any point in the last eight to ten years, there is a high probability it takes 18650 cells. This breadth of compatibility means that buying an 18650 cell is rarely a device-specific decision the way a 21700 cell can be.

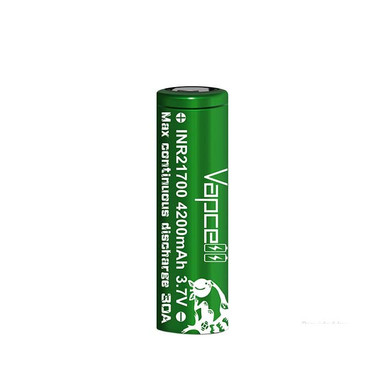

The format does have physical limits. An 18650 cell cannot hold as much energy as a 21700 cell because it is smaller. The M35A at 3500mAh extracts the maximum feasible capacity from that physical envelope. For devices where the 21700 format is an option, upgrading to a 21700 device and the Vapcell P42A gives a step-up in runtime the M35A cannot match.

This is the central trade-off in 18650 cell design, and the M35A sits clearly on the high-capacity side of the equation. The cell chemistry that delivers 3500mAh of stored energy does so at the cost of sustained discharge capability. At 10A CDR, the M35A is not designed for heavy current draws.

In regulated mod terms, 10A CDR is sufficient for output up to approximately 30W to 40W depending on your coil resistance. At a 0.5 ohm coil and 40W output, the current draw is roughly 9A, which the M35A handles comfortably with margin. If you run higher wattages, especially with low-resistance coils, the effective current draw can exceed 10A, which pushes the cell beyond its safe sustained rating.

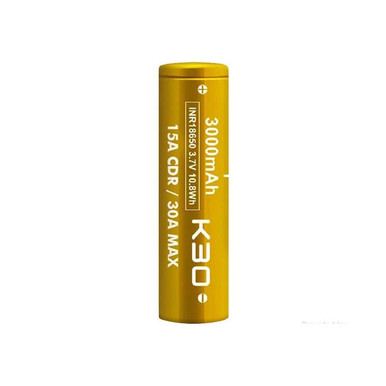

The M35A is therefore best suited to vapers who use their regulated mod at moderate wattages and want the best possible runtime per charge. This covers a large proportion of everyday vapers who find 30W to 60W completely adequate for their style of inhale. If you regularly run above 60W on a single cell, the K30 at 15A CDR gives more headroom without losing much capacity.

The answer depends on your device wattage and how heavily you vape during the day. As a rough guide: at 30W with typical draw lengths and frequency, a 3500mAh cell will power most users through a full working day without needing a recharge. At 50W, expect something closer to three quarters of a day for a moderate vaper, or half a day for a heavy user.

The 3500mAh figure is the total stored charge in the cell. In practice, your device will draw power from the cell until it reaches a low-battery cutoff (usually around 3.0V to 3.2V depending on the device), at which point it will alert you or cut out. The usable capacity before this cutoff is slightly less than the rated 3500mAh, but is representative of real-world performance.

Compared to a standard 3000mAh 18650 cell, the M35A offers roughly 16 to 17 percent more charge per cycle. For a user who currently needs to recharge once daily, that might push the recharge interval to every day and a half. For a heavier user currently charging twice daily, it may comfortably eliminate the mid-day top-up.

The M35A should be charged to a maximum of 4.2V per cell. Most regulated mods with onboard charging respect this limit automatically. For best cell longevity, a dedicated external charger is preferable to onboard USB charging, because dedicated chargers typically provide more accurate voltage control and allow you to charge at a lower current (500mA to 1A) which stresses the cell less than the faster charge rates some onboard systems use.

Do not leave cells on charge unattended for extended periods, and remove cells from the charger promptly when the charge cycle is complete. A cell that sits at 4.2V for hours after reaching full charge undergoes unnecessary stress at the top of the voltage curve. This is a good practice for all lithium-ion cells, not just the M35A.

If your device supports pass-through charging (use while charging), the M35A is compatible. However, charging and discharging simultaneously generates more heat than either process alone, and heat is the primary enemy of lithium-ion cell longevity. Where possible, charge separately from use.

Vapcell offers three 18650 options at VapeCity, and they are designed for different use cases. The M35A is the high-capacity cell: 3500mAh and 10A CDR, suited to moderate wattage regulated mods where runtime is the priority. The K30 sits in the middle: 3000mAh and 15A CDR, for vapers who need a bit more discharge headroom without going to the extreme of the K25. The K25 is the high-discharge option: 2500mAh and 20A CDR, for higher wattage builds or unregulated use.

The right choice depends on your typical wattage. Below 50W, the M35A is the logical pick because you will benefit from the extra capacity without hitting the CDR limit. Between 50W and 80W, the K30 is a better balance. Above 80W on a single 18650 cell, the K25 gives the safest discharge headroom. If you are running dual-battery, even the M35A will manage higher total wattages comfortably because the load is split between cells.
